2 Digit and a half Traffic Speed Sign With Warning Function
Product parameters:
| Product type: | NBTR188-S30 |
| Working temperature: | -40 degree to 60 degree |
| Power consumption: | Red: 15 watt Green: 18watt |
| LED color | Red Green |
| Display | Vehicle Speed |
| Application: | Used for the intersection or highway, School,Parking System |
| Body Material: | cold-roll -steel sheets |
| Mounting: | With mounting bracket |
| Quality warranty: | 1 years |
| Glue Filling Process | Using the full glue filling process |
| Radar working frequency | 24.150GHZ |
| Light lifespan working time: | 1000 hours/ 3 days |
| Parameters setting | Phone App |
| Visible distance: | >300 Meters |
| PCB material | Epoxy glass cloth laminate (FR4) |
| Suggestion Install height | 2-4 Meters |
Product advantage:
First,The NobTra radar speed measurement system can use the mobile
phone APP to set parameters within 10 meters, and can supportApple,Android and Hongmeng operating systems. Simple, convenient easy to set up.
Second,The NobTra radar speed system can use the mobile phone APP to adjust the sensitivity,there are ten levels of
sensitivity.Where 1 is the highest sensitivity and 10 is the lowest sensitivity.The sensitivity can be adjusted according to the enviroment in which the product is used,meet the needs of various projects.
Third,The Nobtra radar speed system can adjust the brightness using the mobile APP,and there are ten levels of brightness.1 is the darkest and 10 is the brightest.The brightness can be adjusted according to the environment in which the product is used,which is flexible and adaptable.
Fourth,Imported raw meterials(including Taiwan-made) high-brightness light-emitting diodes(LEDs),higher brightness and longer life, the lamp beads are eye-catching and distinct in color, and have good visibility both during the day and at night. LED modules and LED lamp beads style are optional.
Fifth,The Nobtra radar speed system is made of high-quality cold-rolled steel,which is 2mm thick galvanized cold-rolled
open-rolled board,with overall baking paint inside and outside, beautiful appearance design, impact
resistance,anti-aging,corrosion resistance,waterproof and dustproof.

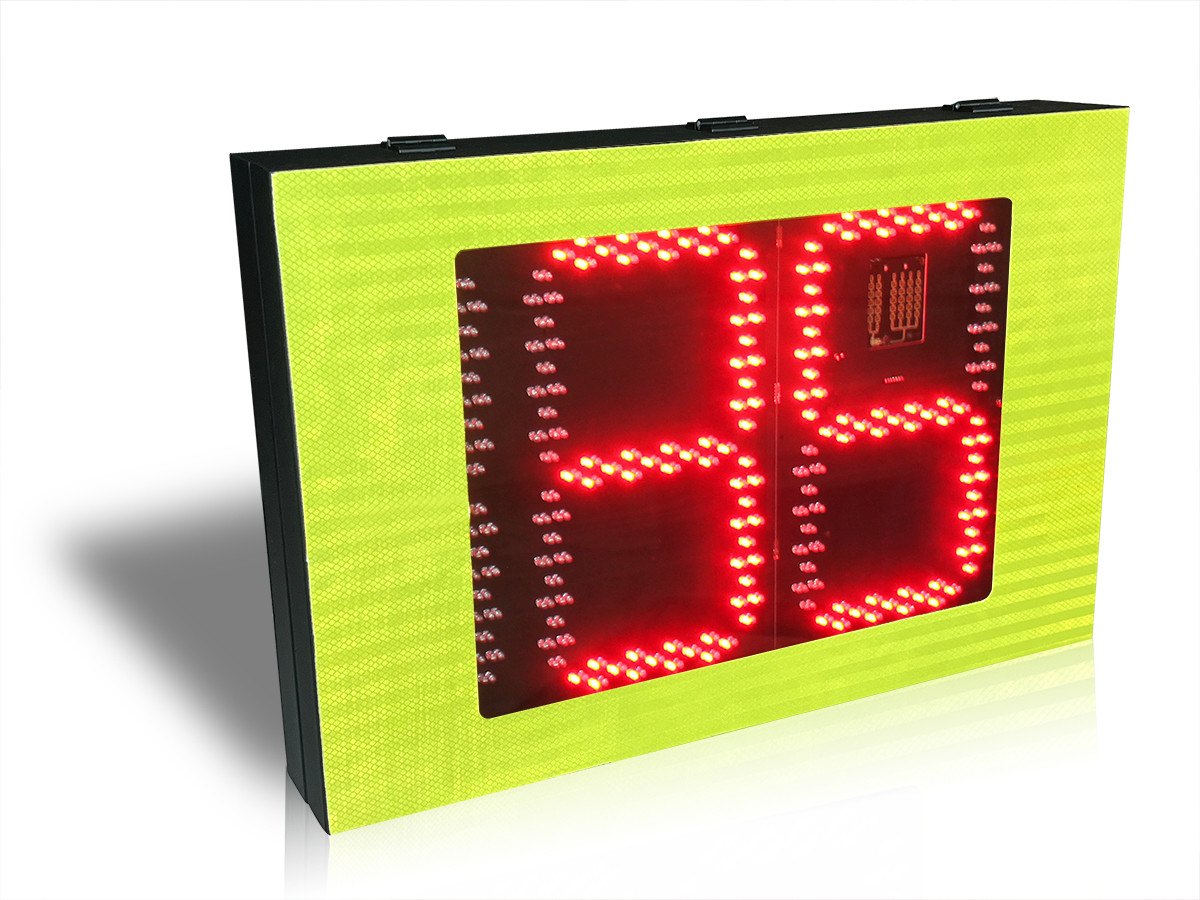

Product Pictures display:
Package information:
| 1 Carton | 1 Set |
| Carton size: | 76*54*13cm |
| G/W: | 12.7KG |
| Production time: | 3-4 working days for sample order 5-8 working days for 10-50pcs 9-15 working days for 51-200pcs 10-25 working days for 201-400pcs |
Shipping method:
1) We can choose the DHL, UPS, Fedex, TNT or Special line. We have cooperation forwarder and competitive price.
2) Shipping by sea and will save some shipping costs. But the delivery time will be longer.
3) Shipping by Air and will be very expensive. Compare with the express and sea. But the delivery time will be short.
4) If you have own forwarder. We can send goods to his warehouse or he/she pick up goods from our factory.
5) FOB SHEN ZHEN &Guangzhou & Ningbo. That's ok.
6) If your address in Shen Zhen, welcome to pick up goods from our factory directly and welcome to visit our factory.
FAQ:
Question1: What power options are available?
Answer1: All of the radar signs can be made in either Solar Powered or AC Powered and some have the option to be Battery operated.
Question2: What is the warranty?
Question2: With 1 years quality warranty. If the accessories had broken and due to the quality problems. We will send a new parts for replacement.
Question3: Whether support the phone app and PC app operate?
Answer3: We provide the phone App and PC app and details user manual.
Question4: Do you accept the OEM?
Answer4: Yes, we have professional R&D department. Base on your actual demand, we can OEM the product for you.
Question 5: Do you provide the techical support for the product setting and installation?
Answer5: We have details instruction. If you don't know how to setting, we will send you a details operate video.
Question6: What's MOQ?
Answer6: MOQ was 1pcs
|
|
2 Digit and a half Traffic Speed Sign With Warning Function Images
|
